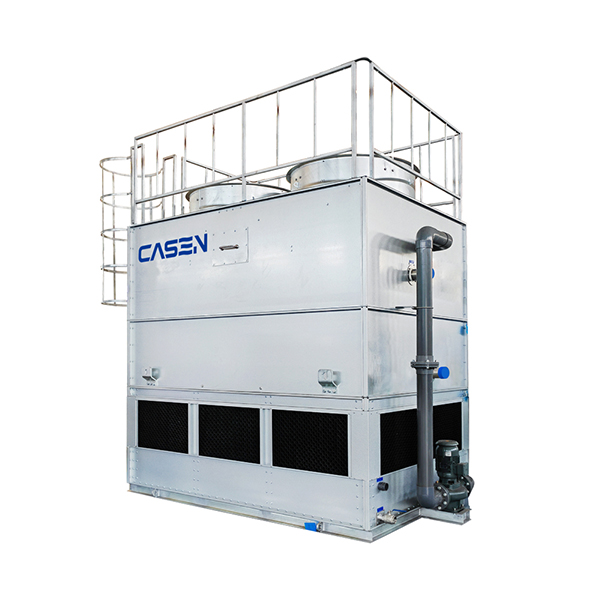

Plate Type Evaporative Condenser

Product origin China

Delivery time 15-25 Working Days

Supply capacity Factory Direct Supply

The Casen Plate Type Evaporative Condenser are highly efficient condensers which are based on Pillow Plate technology. These condensers have obvious upper hand compared with the old coil-based technology, as they offered higher efficiency due to high heat exchange coefficient.

Add to wishlist

分类： Evaporative Condenser 标签： Cold Room Used Evaporative Condenser, Evaporative Cooling Towers, Evaporative Fluid Coolers, Industrial Evaporators, Screw Compressor 品牌： casen

描述
用户评价 (0)

PLATE TYPE EVAPORATIVE CONDENSER

Key Benefits

Higher heat exchange coefficient.
Lower energy consumption.
Easy maintenance, pillow plate bank can easily be cleaned even by a layman.

Very slow scaling as compared to traditional technology.

Typical Applications

Highly suitable for sub-continent atmospheric condition.
Limited plan area installations

Key Characteristics

Metal plate heat exchanger, individual fan drive system, axial fan

CTI Standard STD-201(21) Coil Design
Capacity range 100 – 3000KW (For single cell models, nominal R717 KW, suitable to container delivery)

PRINCIPLE OF OPERATION

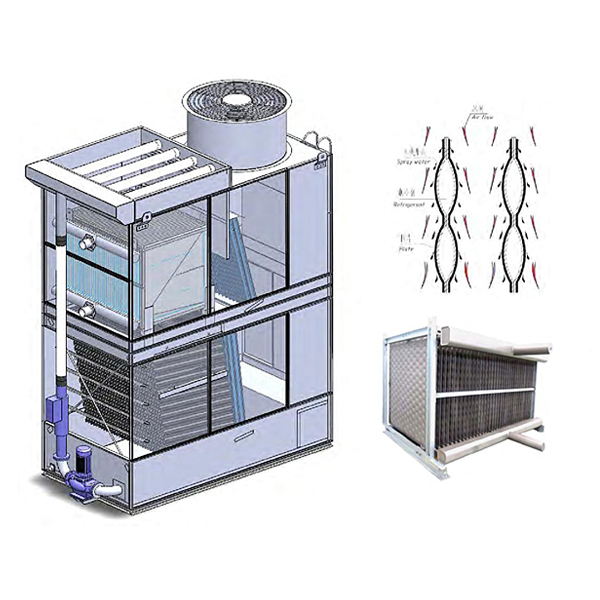

The cooling water is evenly sprayed from the upper part of the plate tube group to the outer surface of the plate tube to form a thin water film. After the water film absorbs heat, part of it is converted into water vapor. The fan at the top of the unit draws air into the unit, swept over the water film, strengthens heat exchange, and promotes the evaporation of the water film; Endothermic cooling, falling into the bottom sump. Then the fan discharges hot air and water vapor.

The water in the sump flows into the water tank and circulates as spray water through the cooling water pump. A water level regulator is set in the water collection.
