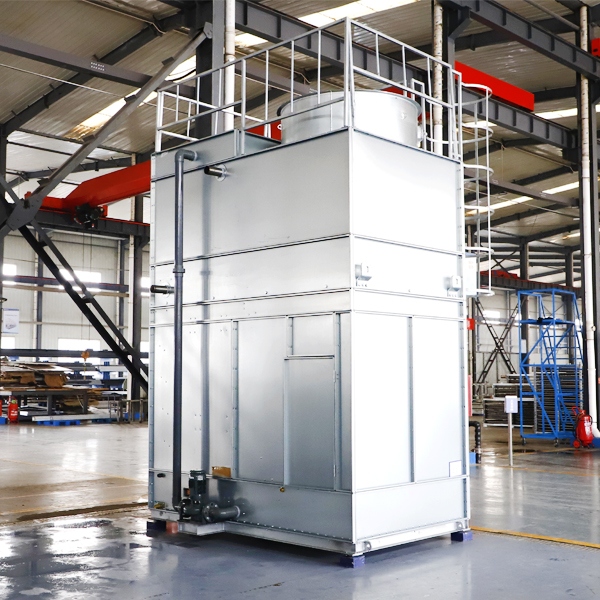

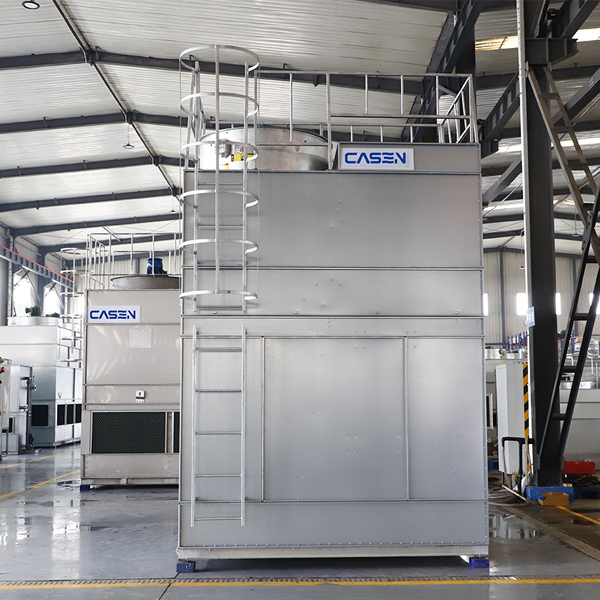

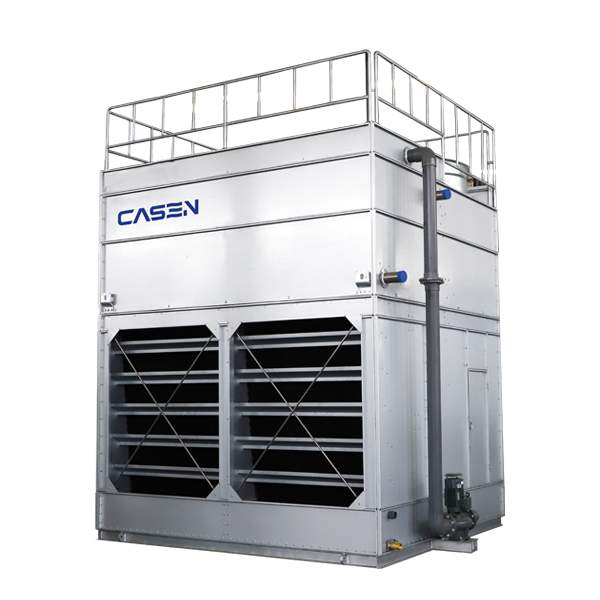

KEF- Cross Flow Type Evaporative Condenser
Product origin China
Delivery time 15-25 Working Days
Supply capacity Factory Direct Supply
KEF evaporative condenser is a combined flow evaporative condenser and the PVC fill can cool the industrial process fluid effectively. A special coil design is utilized to reduce the air pressure drop through the unit while maximizing tube surface area and increasing its heat transfer capabilities.
EmailKEF- CROSS FLOW TYPE EVAPORATIVE CONDENSER
KEF evaporative condenser is a combined flow evaporative condenser and the PVC fill can cool the industrial process fluid effectively.
A special coil design is utilized to reduce the air pressure drop through the unit while maximizing tube surface area and increasing its heat transfer capabilities.
Key Benefit
-
100% heat rejection guarantee
-
Reliable
-
With fill cooling, cost effective
-
Large maintenance space
KEF Characteristics
-
Cross flow, axial fan, induced draft
-
CTI Standard STD-201(21) Coil Design
-
Capacity range 100 – 3000KW(For single cell models, nominal R717 KW, suitable to container delivery)
Typical Applications
-
Installation require a single air inlet
-
Indoor installations
PRODUCTS-KEF EVAPORATIVE CONDENSER
KEF evaporative condenser is a combined flow evaporative condenser and the PVC fill can cool the industrial process fluid effectively.
A special coil design is utilized to reduce the air pressure drop through the unit while maximizing tube surface area and increasing its heat transfer capabilities.
CROSS FLOW TYPE EVAPORATIVE CONDENSER PARAMETERS
DETAIL
1. AXIAL FAN
Particularly suitable for operation at high altitudes and extreme temperatures. Direct drive axial fan with carbon fiber blade, angle index can be adjusted if needed.
-
Siemens / WEG brand motor
-
Protection class IP55/IP56, insulation class F
-
Explosion- proof motor available
PRODUCT FEATURES
2. Casing Materials:SuperDyma Steel
Optional material: Gl, SuperDyma,SS304, SS316
*The corrosion resistance is 10-20 times that of hot-dip galvanized steel, and the notch corrosion resistance is particularly excellent.
* With High hardness, good bonding strength of coated steel plate, good scratch resistance and formability
* It is suitable for applications with high corrosion resistance and high forming requirements such as industrial equipment, construction, photovoltaics, and automobile parts. It has unique advantages in alkaline environments.
Salt spray test: SuperDyma steel vs Ordinary steel plate
Super Dyma Steel shows 5 to 10 times the corrosion resistance compared to galvanized steel sheet on flat surfaces.
In addition, Super Dyma Steel shows equal or greater corrosion resistance than galvalume on flat surfaces.
3. FILL
Fills are designed to with the most suitable flame retardant PVC material to give the best thermal performance, impervious to rot, decay and biological attack.
Widest range of flute geometries PVC with 42% oxygen index, fire classification M2
Working temperature 65
Thickness: 0.3 -0.4 mm
COIL
a. Continuous serpentine shape and oval tube design,improve the tubes air to water interface for increased heat transfer efficiency
b. Whole stainless steel 304 materials,with superior corrosion resistance
c. If needed,the coil is filled with nitrogen to maintain pressure when shipped,keep the coil dry and check the tightness
STRICTIY QUALITY CONTROL
